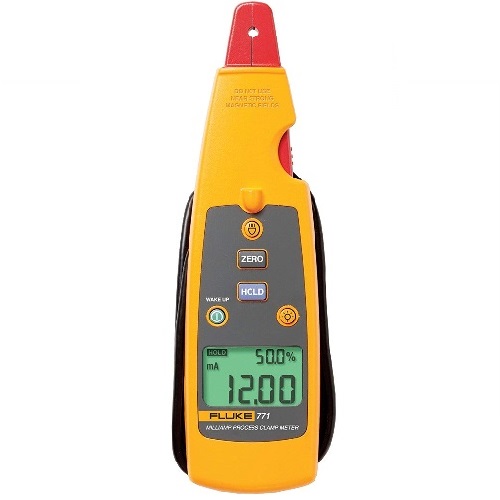

Measure 4 to 20 mA signals without breaking the loop.
• Measure mA signals for PLC and control system analog I/O
• Measure 4 to 20 mA output signals from transmitters without breaking the loop
• Best in class 0.2 % accuracy
• Resolution and sensitivity to 0.01 mA
• Hold function captures and displays changing measurements
• Dual backlit display with both mA measurement and percent of 4 to 20 mA span
• Measurement Spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with extension cable for measurements in tight locations
• Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
• Automatic battery savings features
• Power, 15 minutes automatic power down
• Backlight, 2 minutes, automatic off
• Spotlight, 2 minutes, automatic off
Automatic battery saving features can be disabled if desired.
