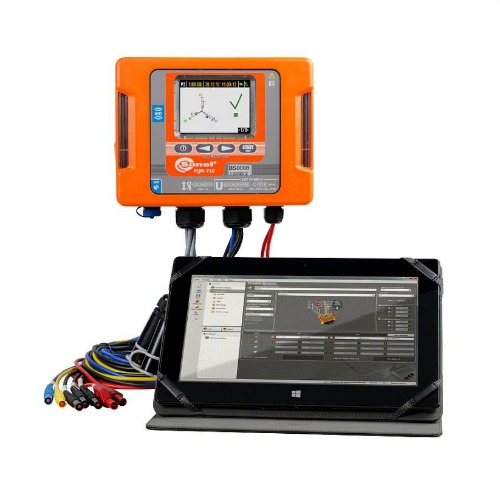

Sonel PQM-710

SKU: WMGBPQM710. Categories: , .

Product Description


Possible measurements:

  • Measures and Records According to the IEX 61000-4-30 Standard Class A.
  • Voltage L1, L2, L3, N PE – average, minimum, maximum and instantaneous , to 760 V, ability to work with voltage transformers,
  • Current L1, L2, L3, N (4 inputs) – average, minimum, maximum and instantaneous values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers.
  • Frequency from 40 Hz to 70 Hz.
  • Active, apparent power, the type of reactive power (capacitive, inductive)
  • Active, reactive, apparent energy.
  • Power factor,
  • Harmonics for voltage and current.
  • Total Harmonic Distortion (THD) for voltage and current.
  • Short-term (P ) and long-term (P ) flicker.
  • Unbalance of voltage and current.
  • Current events detection including waveforms recording.
  • Current and voltage events recording with waveforms (up to 1s) and RMS 10 ms graphs with 30 s maximum recording time.
  • Current and voltage waveforms recording after each averaging period.
  • Mains signaling up to 3000 Hz.

Download Datasheet PQM-710
