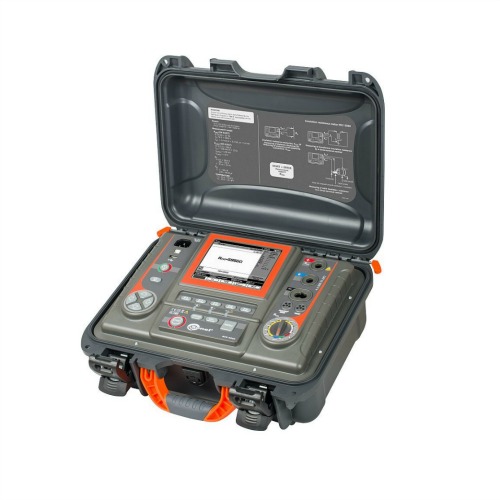

Sonel MIC-5050

SKU: WMGBMIC5050. Categories: , .

Product Description


Insulation resistance measurement up to 20 TΩ.

Measurement voltage any in the range of 50…5000 V (50…1000 V at 10 V and 1…5 kV at 25 V)

  • Digital filters function for measurements in high noise environment.
  • Continuity measurement of protective connections and equipotential bonding in accordance with EN 61557-4 with current > 200 mA.
  • Adjustable limits for measured resistance R and R , ISO CONT.
  • Measurement of leakage current during insulation resistance testing.
  • DC and AC voltage measurement in the range of 0…750 V.
  • Drawing graphs on the display during measurement.
  • Innovative memory with possibility of description of: measurement points, facilities, names of customers.
  • Operating with mini Bluetooth keyboard (option)
  • Graphic LCD 5,6’’ backlit.
  • Keyboard backlit.
  • Power supply from main power line or battery packs.
  • Built-in fast charger.
  • The instruments meet the requirements of the EN 61557 standard.

Download Datasheet MIC-5050
